TAVI

PORTICO™ WITH FLEXNAV™ TAVI SYSTEM

Deliverability Redefined. A Future Optimized.

Take control.
The moment is all yours.

The FlexNav™ Delivery System's exceptional design was purposefully built to give you complete, independent control of Portico™ valve delivery.

  • Achieve excellent outcomes without compromising delivery technique1
  • Experience a controlled, relaxed deployment, due to continuous hemodynamic stability2
  • Treat every case, even the most tortuous anatomies
  • Allow for future treatment options by preserving access to coronaries
  • Achieve a low profile with integrated sheath

FlexNav Delivery System

*14 F equivalent integrated sheath diameter for patients requiring 23 mm or 25 mm valve.


Discover deliverability

AN EXPERIENCE LIKE NO OTHER


Glide through anatomy.

Secure stable, predictable valve placement.

Position the valve exactly where you intend.

A SYSTEM DESIGNED FOR PERFORMANCE


Navigate with ease.

Feel the calm during valve deployment.

Make every procedure your best one yet.

A CLEAR CHOICE FOR EVERY TAVI CASE


From routine to complex cases.

Through femoral or alternative access approaches.

Discover your new workhorse valve.


Find out how we've reimagined TAVI

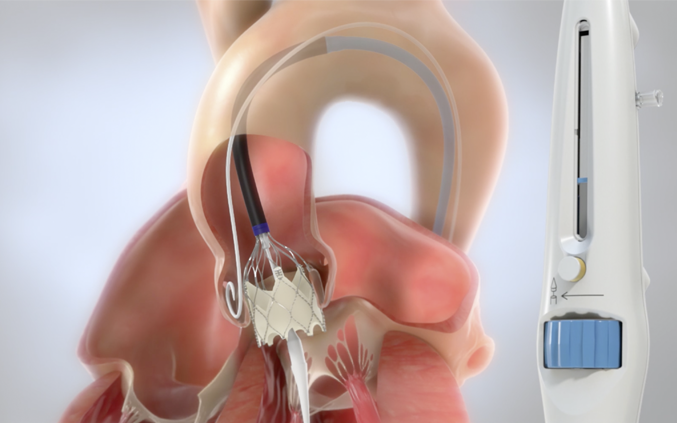

TAVI: The Minimally Invasive Option

The Portico with FlexNav TAVI system is a minimally invasive treatment for patients with aortic valve stenosis. It is indicated for transfemoral or subclavian/axillary delivery in patients with symptomatic severe native aortic stenosis who are considered at high or extreme surgical risk. Surgical valve replacement is another typical intervention.


Poor prognosis without treatment


Physician to TAVI patient: “You were dying of heart failure when I last saw you”

Mark Goodwin, MD, Referring Physician–Glyncorrwg Health Centre, Wales

“I wrote a letter to the hospital to say how impressed I was with the health of this man . . . who within a week was walking a mile, and has now booked holidays left, right, and center.”

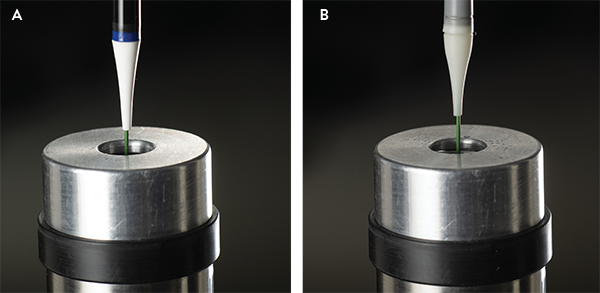

Portico With FlexNav TAVI System requires 76% less insertion force than Evolut PRO Valve with Enveo PRO*4


DOWNLOAD TAVI INSERTION DATA RESULTS


*Based on insertion through a seal to simulate femoral artery.
Indicates a third-party trademark, which is property of its respective owner.

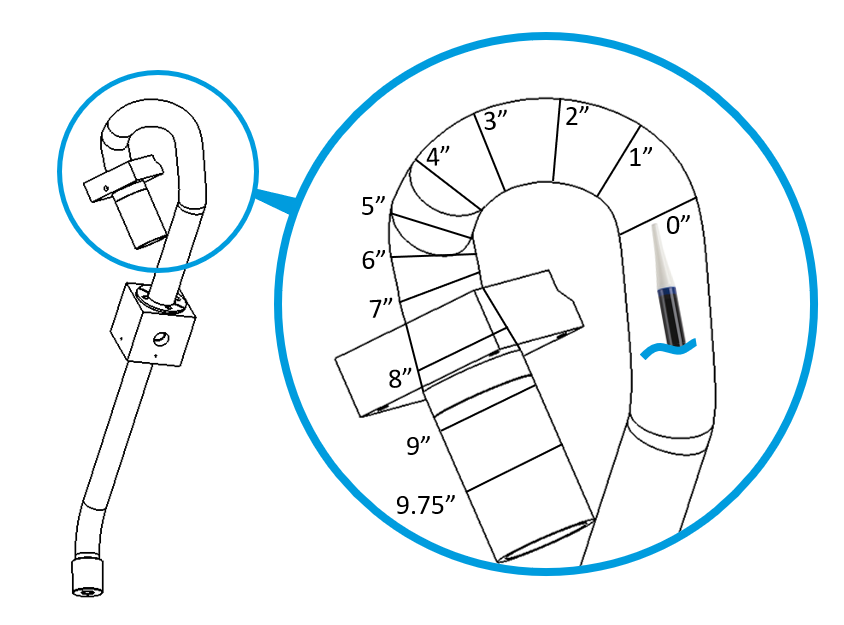

Portico with FlexNav TAVI system is 63% more deliverable than Evolut PRO valve with Enveo PRO*4

Bench tests reveal important deliverability test results. Download the Engineering Insights for a summary of the objective, methodology, and results.

DOWNLOAD DELIVERABILITY RESULTS


*Based on Abbott simulated track-force testing.
Indicates a third-party trademark, which is property of its respective owner.


Big thinking, down to the smallest detail

See progress as you go

Feel every advancement

Open and close with ease

TAKE THE TENSION OUT OF TAVI

Lock in placement accuracy

Dial in the details

  • A deployment indicator gives you a clear visualization of the valve’s deployment progress.

  • The simple deployment wheel provides both audible and tactile feedback as you deploy the valve.

  • Two macro-slide buttons make it easy for you to open and close the distal end of the delivery system during valve loading and post-deployment.

  • The stability layer ensures stable, predictable valve deployment to achieve accurate valve placement.5,6

  • The automatic lock button prevents full valve deployment until you’ve got the valve right where you want it.

  • With the unique micro-adjustment wheel, you can close gaps between the valve capsule and the atraumatic nosecone.

FlexNav TAVI system features

See progress as you go

A deployment indicator gives you a clear visualization of the valve’s deployment progress.

Feel every advancement

The simple deployment wheel provides both audible and tactile feedback as you deploy the valve.

Open and close with ease

Two macro-slide buttons make it easy for you to open and close the distal end of the delivery system during valve loading and post-deployment.

TAKE THE TENSION OUT OF TAVI

The stability layer ensures stable, predictable valve deployment to achieve accurate valve placement.5,6

Lock in placement accuracy

The automatic lock button prevents full valve deployment until you’ve got the valve right where you want it.

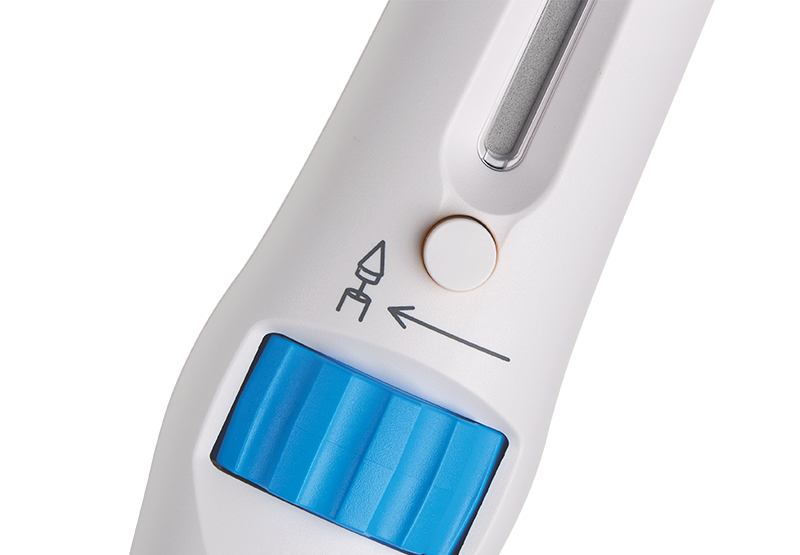

Dial in the details

With the unique micro-adjustment wheel, you can close gaps between the valve capsule and the atraumatic nosecone.
  • Look closer

    Deliverability is in the details.

    Portico with FlexNav TAVI System brings together innovation across every aspect of its design, offering remarkable flexibility and exceptionally smooth tracking.

    3D Flexibility. Infinite possibility.

    FlexNav offers three-dimensional flexibility at the distal end and throughout its entire working length.

    Atraumatic nosecone

    Large-Cell framework

    Flexible capsule

    Hydrophilic coating

    Integrated sheath

    • Atraumatic nosecone and smooth transitions are designed to reduce risk of vascular complications and calcium dislodgement.

    • The large-cell framework of the Portico valve reduces metal mass, resulting in a more flexible capsule.

    • The capsule is more flexible because it does not require bilateral metal rails or extra nitinol braiding, resulting in enhanced flexibility.5

    • Hydrophilic coating reduces friction by 98%,6 providing lubricity to guide the system through vasculature.

    • Integrated sheath for low 14 F delivery profile.3*
      * 14 F equivalent integrated sheath diameter for patients requiring 23 mm or 25 mm valve.

    FlexNav TAVI system offers 3D flexibility
    1
    2
    3
    4
    5
    1. Atraumatic nosecone and smooth transitions are designed to reduce risk of vascular complications and calcium dislodgement.
    2. The large-cell framework of the Portico valve reduces metal mass, resulting in a more flexible capsule.
    3. The capsule is more flexible because it does not require bilateral metal rails or extra nitinol braiding, resulting in enhanced flexibility.7
    4. Hydrophilic coating reduces friction by 98%,7 providing lubricity to guide the system through vasculature.
    5. Integrated sheath for low 14 F delivery profile.4*

    * 14 F equivalent integrated sheath diameter for patients requiring 23 mm or 25 mm valve.

  • Feedback from Portico with FlexNav TAVI system users*

    OVERALL DELIVERABILITY

    “It was very easy to use. We saved two French sizes of the sheath compared to the previous system. The control of the delivery system was absolutely better. It’s a big advantage in the development of the TAVI procedure with the Portico valve.”

    Interventional Cardiologist, Italy

    *The testimonials does not provide any indication, guide, warranty or guarantee as to the response patients may have to the treatment or effectiveness of the product or therapy in discussion. Opinions about the treatment discussed can and do vary and are specific to the individual's experience and might not be representative of others.


Physician insights on the FlexNav delivery system

Hear what physicians have to say about their experiences with the Portico with FlexNav TAVI System.

DOWNLOAD

TAVI Insertion Data Results


GET REPORT


Thinking Ahead

Large-cell geometry and intra-annular valve position preserve coronary access.



ON TARGET, EVERY TIME

Every aspect of Portico with FlexNav was designed to help you place the valve on target, every time. But in case you need to make a move, rest assured.



RECAPTURABLE*

REPOSITIONABLE*

RETRIEVABLE*

*Until fully deployed.

Stable from the start

Continuous hemodynamic stability, no rapid pacing

Intra-annular leaflet position in a self-expanding valve provides early valve function and hemodynamic stability throughout the procedure—for calm and controlled deployment, without compromise.

Deliverability redefined

Full portfolio of Portico valve sizes

There are 4 sizes of the Portico valve—23, 25, 27, and 29 mm—covering an annulus range of 19-27 mm.

DELIVERABILITY REDEFINED.
TAVI REIMAGINED.

EXPERIENCE REMARKABLE
DELIVERABILITY.

PORTICO WITH FLEXNAV
TAVI SYSTEM.

CLINICAL DATA


See the latest clinical data for Portico with FlexNav TAVI system


see clinical data
