Structural Interventions

The Amplatzer™ portfolio of structural intervention occluders provides minimally invasive treatment options for the closure of congenital heart defects and for stroke risk reduction. The procedures are performed through a minimally invasive, transcatheter approach, which prevents the need for open heart surgery and helps facilitate faster recovery and lower complication rates. The Amplatzer line has built a reputation for innovation by pioneering structural heart defect occluder devices and remains the leader in treatment worldwide.

Structural Interventions

The Amplatzer™ portfolio of structural intervention occluders provides minimally invasive treatment options for the closure of congenital heart defects and for stroke risk reduction. The procedures are performed through a minimally invasive, transcatheter approach, which prevents the need for open heart surgery and helps facilitate faster recovery and lower complication rates. The Amplatzer line has built a reputation for innovation by pioneering structural heart defect occluder devices and remains the leader in treatment worldwide.

Thanks to the vision of our Structural Interventions’ founder, Dr. Kurt Amplatz, and the bold, committed physicians who built upon his work, a device was pioneered that could close the holes in the hearts of the tiniest babies: the Amplatzer Piccolo™ Occluder. Watch how we carry on this exciting legacy today.

Can you give metal a memory? This space-age nitinol wire can be turned, twisted or smashed in a million ways and will always perfectly spring back to its original shape. Watch how 300 people work hard every day at our Structural Interventions facilities to turn this magical memory metal into our Abbott Amplatzer Occluders.

Amplatzer Amulet Occluder for atrial fibrillation and ischemic stroke risk

AMPLATZER™ AMULET™ LAA OCCLUDER

STROKE RISK REDUCTION

The Amplatzer Amulet LAA Occluder is designed to treat patients with atrial fibrillation who are at risk of ischemic stroke. The device offers immediate closure1 of the left atrial appendage (LAA), reducing the risk of stroke and immediately eliminating the need for oral anticoagulants.2

Learn more about the Amplatzer Amulet LAA Occluder

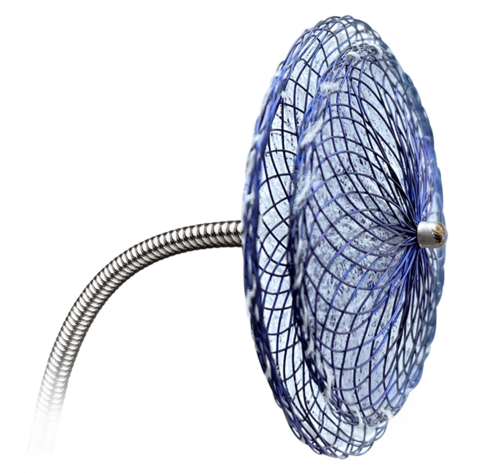

AMPLATZER™ TALISMAN™ PFO OCCLUDER

The Amplatzer PFO Occluder set the standard, pioneering treatment with a device developed specifically for patent foramen ovale (PFO) closure to reduce the risk of recurrent ischemic stroke.3 The Amplatzer Talisman PFO Occluder is built off this proven technology, with key enhancements to make it our most advanced and easy-to-use PFO closure device yet. With over 180,000 devices implanted worldwide,1 we are the leader in PFO closure.

Learn more about the Amplatzer Talisman PFO Occluder

Amplatzer Talisman PFO Occluder for patent foramen ovale closure
Amplatzer Talisman PFO Occluder for patent foramen ovale closure

AMPLATZER™ TALISMAN™ PFO OCCLUDER

The Amplatzer PFO Occluder set the standard, pioneering treatment with a device developed specifically for patent foramen ovale (PFO) closure to reduce the risk of recurrent ischemic stroke.3 The Amplatzer Talisman PFO Occluder is built off this proven technology, with key enhancements to make it our most advanced and easy-to-use PFO closure device yet. With over 180,000 devices implanted worldwide,1 we are the leader in PFO closure.

Learn more about the Amplatzer Talisman PFO Occluder

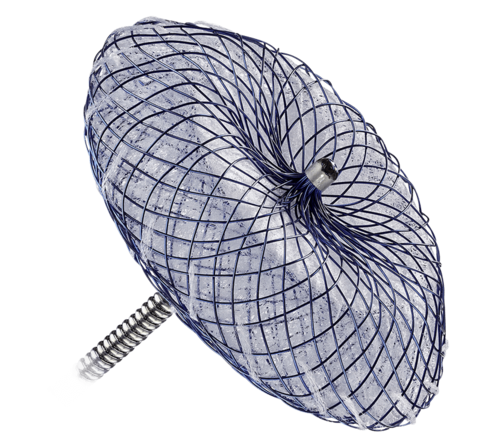

Amplatzer Septal Occluder for atrial septal defect closure

AMPLATZER™ SEPTAL OCCLUDER

CONGENITAL DEFECTS

The Amplatzer Septal Occluder is the standard of care for minimally invasive atrial septal defect (ASD) closure, with a variety of shapes, sizes, and features that facilitate precise placement. It is the most studied ASD closure device available today, with over 20 years of demonstrated clinical experience.4,5

Learn more about the Amplatzer Septal Occluder

AMPLATZER™ DUCT OCCLUDERS

The Amplatzer family of duct occluders offers an extensive line of devices for the closure of patent ductus arteriosus (PDA). Amplatzer Duct Occluders are designed to occlude PDAs of various shapes and sizes to meet the needs of your patients.

Learn more about Amplatzer Duct Occluders

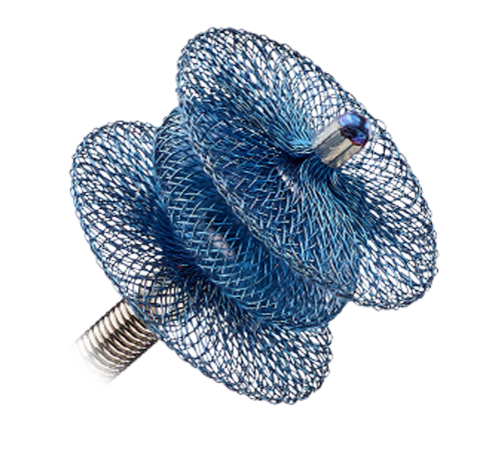

Amplatzer Duct Occluder for patent ductus arteriosus closure
Amplatzer Duct Occluder for patent ductus arteriosus closure

AMPLATZER™ DUCT OCCLUDERS

The Amplatzer family of duct occluders offers an extensive line of devices for the closure of patent ductus arteriosus (PDA). Amplatzer Duct Occluders are designed to occlude PDAs of various shapes and sizes to meet the needs of your patients.

Learn more about Amplatzer Duct Occluders

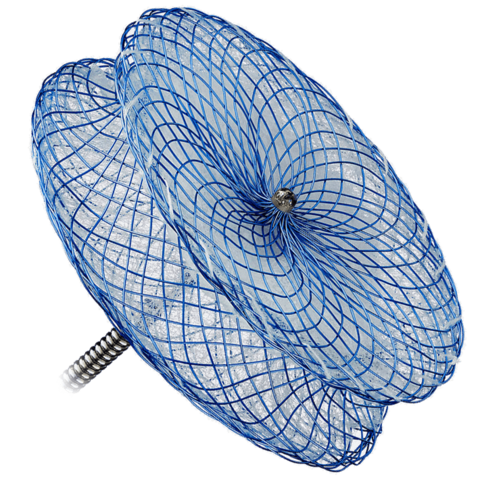

Amplatzer Muscular VSD Occluder for ventricular septal defects

AMPLATZER™ MUSCULAR VSD OCCLUDERS

CONGENITAL DEFECTS

Ventricular septal defects (VSD) are the most common congenital heart defect,6 and one subtype of these defects is muscular VSD. The Amplatzer Muscular VSD Occluders are designed for complete closure of these type of defects.

Learn more about Amplatzer VSD Occluders

MAT-2114949 v2.0 | Item approved for U.S. use only.

References
  1. Data on file at Abbott.
  2. Amplatzer Amulet LAA Occluder Instructions for Use.
  3. Saver JL, Carroll JD, Thaler DE, et al. Long-term outcomes of patent foramen ovale closure or medical therapy after stroke. N Engl J Med. 2017;377:1022-32. doi: 10.1056/NEJMoa1610057
  4. Masura J, Gavora P, Formanek A, et al. Transcatheter closure of secundum atrial septal defects using the new self-centering Amplatzer septal occluder: initial human experience. Cathet Cardiovasc Diagn. 1997;42:388-393.
  5. Amplatzer Septal Occluder Instructions for Use.
  6. Hoffman J, Kaplan S. The incidence of congenital heart disease. J Am Coll Cardiol. 2002;39(12):1890-1900. doi: 10.1016/s0735-1097(02)01886-7
Important Safety Information
  • Amplatzer ASD
  • Amplatzer VSD
  • Amplatzer PDA
  • Amplatzer Talisman PFO
  • Amplatzer Amulet

  • AMPLATZER™ SEPTAL OCCLUDER AND DELIVERY SYSTEM
    INDICATION FOR USE


    The AMPLATZER™ Septal Occluder is a percutaneous, transcatheter, atrial septal defect closure device intended for the occlusion of atrial septal defects (ASD) in secundum position or patients who have undergone a fenestrated Fontan procedure and who now require closure of the fenestration. Patients indicated for ASD closure have echocardiographic evidence of ostium secundum atrial septal defect and clinical evidence of right ventricular volume overload (such as, 1.5:1 degree of left-to-right shunt or RV enlargement).

    CONTRAINDICATIONS

    The AMPLATZER™ Septal Occluder is contraindicated for the following:

    •  Any patient known to have extensive congenital cardiac anomaly which can only be adequately repaired by way of cardiac surgery.
    •  Any patient known to have sepsis within 1 month prior to implantation, or any systemic infection that cannot be successfully treated prior to device placement.
    •  Any patient known to have a bleeding disorder, untreated ulcer, or any other contraindications to aspirin therapy, unless another antiplatelet agent can be administered for 6 months.
    •  Any patient known to have a demonstrated intracardiac thrombi on echocardiography (especially left atrial or left atrial appendage thrombi).
    • Any patient whose size (such as, too small for transesophageal echocardiography probe, catheter size) or condition (active infection, etc.) would cause the patient to be a poor candidate for cardiac catheterization.
    •  Any patient where the margins of the defect are less than 5 mm to the coronary sinus, inferior vena cava rim, AV valves, or right upper lobe pulmonary vein.

    WARNINGS

    • Physicians must be prepared to deal with urgent situations, such as device embolization, which require removal of the device. This includes the availability of an on-site surgeon.
    • Embolized devices must be removed as they may disrupt critical cardiac functions. Embolized devices should not be withdrawn through intracardiac structures unless they have been adequately collapsed within the sheath.
    • Use on or before the expiration date noted on the product packaging.
    • This device is sterilized using ethylene oxide and is for single use only. Do not reuse or resterilize. Attempts to resterilize the device may result in device malfunction, inadequate sterilization, or patient harm.
    • Do not use the device if the packaging sterile barrier is open or damaged.
    • Do not release the AMPLATZER™ Septal Occluder from the delivery cable if the device does not conform to its original configuration, or if the device position is unstable or if the device interferes with any adjacent cardiac structure (such as Superior Vena Cava (SVC), Pulmonary Vein (PV), Mitral Valve (MV), Coronary Sinus (CS), aorta (AO)). Recapture the device and redeploy. If still unsatisfactory, recapture the device and either replace with a new device or refer the patient for alternative treatment.
    • Implantation of this device may not supplant the need for Coumadin™ in patients with ASD and paradoxical emboli.
    • The use of echocardiographic imaging (TTE, TEE, or ICE) is required.
    • Balloon sizing should be used to size the atrial septal defect using a stop-flow technique. Do not inflate the balloon beyond the cessation of the shunt (such as, stop-flow). DO NOT OVERINFLATE.
    • Patients with a retro-aortic rim of less than 5 mm in any echocardiographic plane, or patients in whom the device physically impinges on (i.e. indents or distorts) the aortic root, may be at increased risk of erosion.
    • Do not select a device size greater than 1.5 times the echocardiographic-derived ASD diameter prior to balloon sizing.

    PRECAUTIONS

    • The use of this device has not been studied in patients with patent foramen ovale.
    •  Use standard interventional cardiac catheterization techniques to place this device.
    •  Placement of the AMPLATZER™ Septal Occluder may impact future cardiac interventions, for example transeptal puncture and mitral valve repair.
    • This device contains nickel-titanium alloy, which is generally considered safe. However, in vitro testing has demonstrated that nickel is released from this device for a minimum of 60 days. Patients who are allergic to nickel may have an allergic reaction to this device, especially those with a history of metal allergies. Certain allergic reactions can be serious; patients should be instructed to seek medical assistance immediately if they suspect they are experiencing an allergic reaction. Symptoms may include difficulty in breathing or swelling of the face or throat. While data is currently limited, it is possible that some patients may develop an allergy to nickel if this device is implanted.
    • MR Conditional to 3.0 Tesla
      Caution should be used if an MRI is performed with a magnetic field of >3.0 tesla. Through non-clinical testing, the AMPLATZER™ device has been known to be MR Conditional at field strengths of 3.0 tesla or less with a maximum whole-body-averaged specific absorption rate (SAR) of 3.83 W/kg at 1.5 tesla and 5.57 W/kg at 5.0 tesla for a 20-minute exposure to a B1 of 118 μT. The AMPLATZER™ device should not migrate in this MR environment. Non-clinical testing has not been performed to rule out the possibility of migration at field strengths higher than 3.0 tesla. In this testing, the device produced a temperature rise of 1.1°C at 1.5 tesla and 1.6°C at 5.0 tesla. MR image quality may be compromised if the area of interest is in the exact same area or relatively close to the position of the device.

    POTENTIAL ADVERSE EVENTS

    Potential adverse events may occur during or after a procedure placing this device may include, but are not limited to:

    Air embolus; Allergic dye reaction; Anesthesia reactions; Apnea; Arrhythmia; Cardiac tamponade; Death; Embolization; Fever; Hypertension/ hypotension; Infection including endocarditis; Need for surgery; Pericardial effusion; Perforation of vessel or myocardium; Pseudoaneurysm including blood loss requiring transfusion; Stroke; Tissue erosion; Thrombus formation on discs; Valvular regurgitation

  • AMPLATZER™ MUSCULAR VSD OCCLUDER
    INDICATION AND USAGE


    The AMPLATZER™ Muscular VSD Occluder is indicated for use in patients with a complex ventricular septal defect (VSD) of significant size to warrant closure (large volume left-to-right shunt, pulmonary hypertension, and/or clinical symptoms of congestive heart failure) who are considered to be at high risk for standard transatrial or transarterial surgical closure based on anatomical conditions and/or based on overall medical condition. High-risk anatomical factors for transatrial or transarterial surgical closure include patients:

    • Requiring left ventriculotomy or an extensive right ventriculotomy.
    • With a failed previous VSD closure.
    • With multiple apical and/or anterior muscular VSDs (“Swiss cheese septum”).
    • With posterior apical VSDs covered by trabeculae.

    CONTRAINDICATIONS

    The AMPLATZER™ Muscular VSD Occluder is contraindicated for the following:

    • Patients with defects less than 4 mm distance from the semilunar (aortic and pulmonary) and atrioventricular valves (mitral and tricuspid)
    • Patients with severely increased pulmonary vascular resistance above 7 Wood units and a right-to-left shunt and documented irreversible pulmonary vascular disease
    • Patients with perimembranous (close to the aortic valve) VSD
    • Patients with post-infarction VSD
    • Patients who weigh less than 5.2 kg. (Patients smaller than 5.2 kg were studied in the clinical trial, but due to poor outcome, these patients have been contraindicated for device placement. Data from these patients has not been included in the overall analysis.)
    • Patients with sepsis (local/generalized)
    • Patients with active bacterial infections
    • Patients with contraindications to antiplatelet therapy or agents

    WARNINGS

    • The AMPLATZER™ Muscular VSD Occluder and delivery system should only be used by those physicians trained in transcatheter defect closure techniques.
    • Physicians must be prepared to deal with urgent situations, such as device embolization, which require removal of the device. This includes the availability of an on-site surgeon.
    • Embolized devices must be removed. Embolized devices should not be withdrawn through intracardiac structures unless they have been adequately collapsed within a sheath.
    • Use on or before the last day of the expiration month noted on the product packaging.
    • The device is sterilized using ethylene oxide and is for single use only. Do not reuse or resterilize. Attempts to resterilize the device may result in device malfunction, inadequate sterilization, or patient harm.
    • Do not use the device if the packaging sterile barrier is open or damaged.
    • Do not release the AMPLATZER™ Muscular VSD Occluder from the delivery cable if the device does not conform to its original configuration or if the device position is unstable. Recapture the device and redeploy. If still unsatisfactory, recapture the device and replace with a new device.
    • Device closure in patients who have suffered a previous thromboembolic stroke should be discussed with the patient or family. In addition, consultation with a neurologist and hematologist is suggested to determine if the benefit of device closure outweighs the risk.

    PRECAUTIONS

    Handling
    Store in a dry place.

    Sizing
    Accurate defect sizing is crucial and mandatory for AMPLATZER™ Muscular VSD Occluder device selection. The VSD should be assessed and sized at end diastole by transesophogeal echocardiography (TEE) or angiography to determine the appropriate device size. Device selection should be 2 mm larger than the defect size.

    Procedural

    • This device contains nickel-titanium alloy, which is generally considered safe. However, in vitro testing has demonstrated that nickel is released from this device for a minimum of 60 days. Patients who are allergic to nickel may have an allergic reaction to this device, especially those with a history of metal allergies. Certain allergic reactions can be serious; patients should be instructed to seek medical assistance immediately if they suspect they are experiencing an allergic reaction. Symptoms may include difficulty in breathing or swelling of the face or throat. While data is currently limited, it is possible that some patients may develop an allergy to nickel if this device is implanted.
    • The physician should exercise clinical judgment in situations that involve the use of anticoagulants or antiplatelet drugs before, during, and/or after the use of this device.
    • This device should only be used by physicians who have been trained in transcatheter techniques and who should determine which patients are suitable candidates for procedures using this device.
    • Aspirin (eg, 81 mg or 325 mg) or an alternative antiplatelet/anticoagulant is recommended to be started at least 24 hours prior to the procedure. Cephalosporin therapy is optional.
    • Maintain a recommended minimum active clotting time (ACT) of 200 seconds prior to device insertion and throughout the procedure.
    • If TEE is used, the patient’s esophogeal anatomy must be adequate for placement and manipulation of the TEE probe.
    • Patients requiring multiple devices and/or concomitant catheterization procedures might require prolonged fluoroscopy times and multiple cineangiograms. The risks of radiation exposure (eg, increased cancer risk) should be discussed in detail with the patient or family and alternatives which do not involve radiation exposure should be reviewed.

    Post-implant

    • Patients should be treated with antiplatelet/anticoagulation therapy (such as aspirin) for 6 months post-implant. The decision to continue antiplatelet/anticoagulation therapy beyond 6 months is at the discretion of the physician.
    • Endocarditis prophylaxis should be followed according to the American Heart Association recommendations.
    • Any patient who has a residual shunt should undergo an echocardiographic evaluation of the residual shunt every 6 months until complete closure of the defect has been confirmed.
    • Patients should be instructed to avoid strenuous activity for 1 month. Strenuous activities such as contact sports prior to 1 month after implant may cause the device to dislodge and embolize.

    Use in Specific Populations

    • Pregnancy - Care should be taken to minimize the radiation exposure to the fetus and the mother.
    • Nursing mothers - There has been no quantitative assessment of the presence of leachables from the device/procedure in breast milk, and the risk to nursing mothers is unknown.

    MR Conditional1
    Through non-clinical testing, AMPLATZER™ devices have been shown to be MR Conditional. A patient with an implanted AMPLATZER™ device can be scanned safely immediately after placement of the device under the following conditions:

    • Static magnetic field of 3 tesla or less
    • Spatial gradient magnetic field of 720 G/cm or less
    • Maximum MR system-reported, whole-body-averaged specific absorption rate (SAR) of 3 W/kg for 15 minutes of scanning

    During testing, the device produced a clinically non-significant temperature rise at a maximum MR system-reported, whole-body-averaged specific absorption rate (SAR) of 3 W/kg for 15 minutes of scanning in a 3 tesla MR system using a transmit/receive body coil.

    MR image quality may be compromised if the area of interest is in the exact same area or relatively close to the position of the device. Therefore, optimization of MR imaging parameters to compensate for the presence of this device may be necessary.

    POTENTIAL ADVERSE EVENTS

    Potential adverse events may occur during or after a procedure using this device may include, but are not limited to:

    Air embolus; Allergic drug reaction; Allergic dye reaction; Anemia; Anesthesia reactions; Apnea; Arrhythmia; Arterial pulse loss; Atelectasis; Bacterial endocarditis; Blood loss requiring transfusion; Brachial plexus injury; Cardiac arrest; Cardiomyopathy; Chest pain; Cyanosis; Death; Device embolization; Device fracture; Fever; Headache/migraine; Heart block; Hypotension; Myocardial infarction; Perforation of the vessel or myocardium; Peripheral embolism; Stridor; Stroke; Subaortic stenosis; Thrombus formation on device; Vascular access site injury; Venous thrombosis; Vomiting

    1. MR Conditional as defined in ASTM F 2503-05.

  • AMPLATZERTM DUCT OCCLUDER AND DELIVERY SYSTEM
    INDICATIONS AND USAGE


    The AMPLATZERTM Duct Occluder is a percutaneous, transcatheter occlusion device intended for the nonsurgical closure of a patent ductus arteriosus (PDA).

    CONTRAINDICATIONS

    • Patients weighing less than 6 kg
    • Patients less than 6 months of age
    • Presence of thrombus at the intended site of implant, or documented evidence of venous thrombus in the vessels through which access to the defect is gained
    • Active endocarditis or other infections producing bacteremia
    • Patients whose vasculature, through which access to the defect is gained, is inadequate to accommodate the appropriate sheath size
    • Patients with pulmonary hypertension with pulmonary vascular resistance of greater than 8 Wood units or Rp/Rs of greater than 0.4

    WARNINGS

    • The device should be removed if greater than 3 mm extends into the pulmonary artery, or if more than half of the left pulmonary artery lumen is occupied by the device.
    • There is limited clinical data for patients over 40 years of age.
    • The AMPLATZERTM Duct Occluder and 180° Delivery System should only be used by those physicians trained in transcatheter defect closure techniques.
    • Physicians must be prepared to deal with urgent situations which require removal of embolized devices that result in critical hemodynamic compromise. This includes the availability of an on-site surgeon.
    • Embolized devices must be removed. Embolized devices should not be withdrawn through intracardiac structures unless they have been adequately collapsed within a sheath.
    • Do not use if the sterile barrier has been compromised in any way.
    • Do not release the AMPLATZERTM Duct Occluder from the delivery cable if the device does not conform to its original configuration or if the device position is unstable. Recapture the device and redeploy. If still unsatisfactory, recapture the device and replace with a new device.

    PRECAUTIONS

    Handling
    The AMPLATZERTM Duct Occluder and 180° Delivery System were sterilized with ethylene oxide and are for single use only. Do not reuse or resterilize. Attempts to resterilize this device can cause a malfunction,  insufficient sterilization, or harm to the patient.

    Sizing
    Accurate defect sizing is crucial and mandatory for AMPLATZER™ Duct Occluder device selection. Refer to Table 4 for sizing instructions.

    Procedural

    • This device contains nickel-titanium alloy, which is generally considered safe. However, in vitro testing has demonstrated that nickel is released from this device for a minimum of 60 days. Patients who are allergic to nickel may have an allergic reaction to this device, especially those with a history of metal allergies. Certain allergic reactions can be serious; patients should be instructed to seek medical assistance immediately if they suspect they are experiencing an allergic reaction. Symptoms may include difficulty in breathing or swelling of the face or throat. While data is currently limited, it is possible that some patients may develop an allergy to nickel if this device is implanted. Some forms of nickel have also been associated with carcinogenicity (ability to cause cancer) in animal models. In humans, carcinogenicity has been demonstrated only through an inhalation route (breathing nickel in) which will not occur with this procedure.
    • The physician should exercise clinical judgment in situations that involve the use of anticoagulants or antiplatelet drugs before, during, and/or after the use of this device.

    Post-implant

    • Endocarditis prophylaxis is carried out for 6 months according to the recommendation of the American Heart Association. The decision to continue endocarditis prophylaxis beyond 6 months is at the discretion of the physician.
    • Any patient who has a residual shunt will undergo an echo cardiographic evaluation of the residual shunt until complete closure of the defect has been confirmed.
    • Lung perfusion scan should be completed if flow through is greater than 3 m/s, or if the Z-score is -2 for the left pulmonary artery diameter.
    • MR Conditional to 3.0 Tesla
      Through nonclinical testing, the AMPLATZERTM device has been known to be MR Conditional at field strengths of 3.0 tesla or less with a maximum whole-body-averaged specific absorption rate (SAR) of 3.83 W/kg at 1.5 tesla and 5.57 W/kg at 5.0 tesla for a 20-minute exposure to a B1 of 118μ tesla. The AMPLATZERTM device should not migrate in this MR environment. Nonclinical testing has not been performed to rule out the possibility of migration at field strengths higher than 3.0 tesla.
      In this testing, the device produced a temperature rise of 1.1°C at 1.5 tesla and 1.6°C at 5.0 tesla.
      MR image quality may be compromised if the area of interest is in the exact same area or relatively close to the position of the device.

    Use in Specific Populations

    • Pregnancy — Care should be taken to minimize the radiation exposure to the fetus and the mother.
    • Nursing mothers — There has been no quantitative assessment of the presence of leachables in breast milk.

    POTENTIAL ADVERSE EVENTS

    Placement of the AMPLATZERTM Duct Occluder involves using standard interventional cardiac catheterization techniques. In addition to the above observed adverse events, the following are potential adverse events listed in alphabetical order that were not observed in the clinical study.

    The following events might occur from either the catheterization procedure or from the device:

    • Air embolus
    • Allergic drug reaction
    • Allergic dye reaction
    • Anesthesia reactions
    • Apnea
    • Arrhythmia
    • Bacterial endocarditis
    • Bleeding
    • Brachial plexus injury
    • Chest pain
    • Death
    • Delivery system failure
    • Fever
    • Headache/migraine
    • Hypertension/hypotension
    • Myocardial infarction
    • Partial obstruction of aorta
    • Partial obstruction of pulmonary artery
    • Perforation of vessel or myocardium
    • Peripheral embolism
    • Stroke/transient ischemic attack
    • Thrombus
    • Valvular regurgitation
    • Vascular access site complications

  • AMPLATZER™ TALISMAN™ PFO OCCLUDER
    INDICATION FOR USE


    The Amplatzer™ Talisman™ PFO Occluder is indicated for percutaneous transcatheter closure of a patent foramen ovale (PFO) to reduce the risk of recurrent ischemic stroke in patients, predominantly between the ages of 18 and 60 years, who have had a stroke due to a presumed paradoxical embolism, as determined by a neurologist and cardiologist following an evaluation to exclude other causes of ischemic stroke.

    CONTRAINDICATIONS

    • Presence of thrombus at the intended site of implant, or documented evidence of venous thrombus in the vessels through which access to the defect is gained.
    • Patients with intra-cardiac thrombus, mass, vegetation, or tumor.
    • Patients whose vasculature, through which access to the PFO is gained, is inadequate to accommodate the appropriate sheath size.
    • Patients with anatomy in which the required Amplatzer™ Talisman™ PFO device size would interfere with other intracardiac or intravascular structures, such as valves or pulmonary veins.
    • Patients with another source of right-to-lehunts, including an atrial septal defect and/or fenestrated septum.
    • Patients with active endocarditis or other untreated infections.
    • Patients who are unable to tolerate intra-procedural anticoagulation or post-procedural anti-platelet therapy.

    WARNINGS

    • Do not use an open or damaged pouch; do not use a damaged device.
    • Patients who are at increased risk for venous thromboembolic events should be managed with thromboembolic risk reduction regimen after the PFO closure following standard of care.
    • The safety and effectiveness of the Amplatzer™ Talisman™ PFO Occluder has not been established in patients with a hypercoagulable state.
    • Prepare for situations that require percutaneous or surgical removal of this device. This includes availability of a surgeon and access to operating room.
    • Embolized devices must be removed as they may disrupt critical cardiac functions. Do not remove an embolized occluder through intracardiac structures unless the occluder is fully recaptured inside a catheter or sheath.
    • The Amplatzer™ Talisman™ PFO Occluder device consists of a nickel-titanium alloy, which is generally considered safe. However, in vitro testing has demonstrated that nickel is released from this device for a minimum of 60 days. Patients who are allergic to nickel may have an allergic reaction to this device, especially those with a history of metal allergies. Certain allergic reactions can be serious; patients should be instructed to notify their physicians immediately if they suspect they are experiencing an allergic reaction such as difficulty breathing or inflammation of the face or throat. Some patients may also develop an allergy to nickel if this device is implanted.
    • Transient hemodynamic compromise may be encountered during device placement, which may require fluid replacement or other medications as determined by the physician.
    • Prior to device detachment, evaluate the position of the device relative to the free atrial wall and the aortic root using echocardiography.
    • Use echocardiography to ensure that the device does not impinge on the free atrial wall or aortic root.
    • Do not release the device from the delivery cable if the device does not conform to its original configuration, or if the device position is unstable or if the device interferes with any adjacent cardiac structure (such as Superior Vena Cava (SVC), Pulmonary Vein (PV), Mitral Valve (MV), Coronary Sinus (CS), aorta (AO)). If the device interferes with an adjacent cardiac structure, recapture the device and redeploy. If still unsatisfactory, recapture the device and either replace with a new device or consider alternative treatments.
    • DO NOT use the Amplatzer™ Talisman™ PFO Occluder after the Use-by date stated on the package label.
    • This device was sterilized with ethylene oxide and is for single use only. Never reuse or re-sterilize the system. Use of expired, reused, or re-sterilized devices may result in infection.
    • This device should be used only by physicians who are trained in standard transcatheter techniques.

    PRECAUTIONS FOR SPECIAL POPULATIONS

    • Pregnancy: The safety and effectiveness of this occluder has not been established during pregnancy. Fluoroscopic x-ray guidance is used during placement of the device. The risk of increased X-ray exposure for patients who are pregnant must be weighed against the potential benefits of this technique.
    • Nursing mother: The safety and effectiveness of this occluder has not been established in lactating mothers. There has been no quantitative assessment for the presence of leachables in breast milk.
    • Pediatric Population: The safety and effectiveness of this occluder has not been established in a pediatric population.

    PRECAUTIONS

    • Aspirin(325mg/day)(oralternativeantiplatelet/anticoagulant,if patient has aspirin intolerance) is recommended to be started at least 24 hours prior to the procedure.
    • Antibiotics should be administered peri-procedurally.
    • Patients should be fully heparinized throughout the procedure using adequate dosing so as to keep the activated clotting time (ACT) greater than 200 seconds.

    CAUTION: Intracardiac echocardiography (ICE) or transesophageal echocardiography (TEE) is recommended as an aid in evaluating the PFO and placing the AmplatzerTM TalismanTM PFO Occluder. If TEE is used, the patient’s esophageal anatomy must be adequate for placement.

    CAUTION: Be cautious when using fluoroscopic X-ray guidance, which may be used during placement of the device.

    CAUTION: Do not use a power injection system to put contrast solution through the sheath.

    • The safety and effectiveness of the AmplatzerTM TalismanTM PFO Occluder has not been established in patients (with):
      • Age less than 18 years or greater than 60 years because enrollment in the pivotal study (the RESPECT trial) was limited to patients 18 to 60 years old
      • A hypercoagulable state including those with a positive test for a anticardiolipin antibody (IgG or IgM), Lupus anticoagulant, beta-2 glycoprotein-1 antibodies, or persistently elevated fasting plasma homocysteine despite medical therapy
      • Unable to take antiplatelet therapy
      • Atherosclerosis or other arteriopathy of the intracranial and extracranial vessels associated with a ≥50% luminal stenosis
      • Acute or recent (within 6 months) myocardial infarction or unstable angina
      • Left ventricular aneurysm or akinesis
      • Mitral valve stenosis or severe mitral regurgitation, irrespective of etiology
      • Aortic valve stenosis (mean gradient greater than 40 mmHg) or severe aortic valve regurgitation
      • Mitral or aortic valve vegetation or prosthesis
      • Aortic arch plaques protruding greater than 4 mm into the aortic lumen
      • Left ventricular dilated cardiomyopathy with left ventricular ejection fraction (LVEF) less than 35%
      • Chronic, persistent, or paroxysmal atrial fibrillation or atrial flutter
      • Uncontrolled hypertension or uncontrolled diabetes mellitus
      • Diagnosis of lacunar infarct probably due to intrinsic small vessel as qualifying stroke event
      • Arterial dissection as cause of stroke
      • Index stroke of poor outcome (modified Rankin score greater than 3)
      • Pregnancy at the time of implant
      • Multi-organ failure

    PATIENT COUNSELING INFORMATION

    Physicians should review the following information when counseling patients about the AmplatzerTM TalismanTM PFO Occluder and the implant procedure:

    • The safety and effectiveness of PFO closure withthe AmplatzerTM TalismanTM PFO Occluder in combination with the required post- implant antiplatelet therapy.
    • PFO closure with the AmplatzerTM TalismanTM PFO Occluder can only reduce the risk for a recurrent stroke due to a paradoxical embolism through a PFO.
      • With aging, there is an increased likelihood that non-PFO related risks for stroke may develop and cause a recurrent ischemic stroke independent of PFO closure.
    • The procedural risks associated with AmplatzerTM TalismanTM PFO Occluder.
    • The need for adherence to a defined adjunctive antithrombotic therapy following implantation of the AmplatzerTM TalismanTM PFO Occluder.
    • Patients with a history of DVT or PE may benefit from continuation or resumption of anticoagulation therapy following implantation of the AmplatzerTM TalismanTM PFO Occluder to reduce the risk of recurrent DVT or PE.

    It is recommended that the medical team (neurologist and cardiologist) and the patient engage in a shared decision-making process and discuss the risks and benefits of PFO closure in comparison to using antithrombotic therapy alone, while taking into account the patient’s values and preferences.

    POTENTIAL ADVERSE EVENTS

    Potential adverse events that may occur during or after a procedure using this device may include, but are not limited to:

    • Air embolus
    • Allergic reaction/toxic effect due to: anesthesia, contrast media, medication, or metal
    • Arrhythmia
    • Arteriovenous fistulae
    • Bleeding
    • Cardiac perforation
    • Cardiac tamponade
    • Chest pain
    • Death
    • Deep vein thrombosis
    • Device embolization
    • Device erosion
    • Endocarditis
    • Esophagus injury
    • Fever
    • Headache/migraine
    • Hematoma
    • Hypertension/hypotension
    • Infection
    • Myocardial infarction
    • Pacemaker placement secondary to PFO device closure
    • Pain
    • Pericardial effusion
    • Pericarditis
    • Peripheral embolism
    • Pseudoaneurysm
    • Pulmonary embolism
    • Reintervention for residual shunt/device removal
    • Stroke
    • Transient ischemic attack
    • Thrombus formation
    • Valvular regurgitation
    • Vascular access site injury
    • Vessel perforation

  • AMPLATZER™ AMULET™ LEFT ATRIAL APPENDAGE OCCLUDER
    INDICATION FOR USE

    The Amplatzer™ Amulet™ Left Atrial Appendage Occluder is a percutaneous transcatheter device intended to reduce the risk of thrombus embolization from the left atrial appendage (LAA) in patients who have nonvalvular atrial fibrillation and who are at increased risk for stroke and systemic embolism based on CHADS2 or CHA2DS2-VASc scores, are suitable for short term anticoagulation therapy, and have appropriate rationale to seek a non-pharmacologic alternative to oral anticoagulation, taking into consideration the safety and effectiveness of the device.

    CONTRAINDICATIONS

    The Amplatzer™ Amulet™ Left Atrial Appendage (LAA) Occluder is contraindicated for patients:

    • with the presence of intracardiac thrombus,
    • with active endocarditis or other infections producing bacteremia.
    • where placement of the device would interfere with any intracardiac or intravascular structures.

    WARNINGS

    •  If the device is retracted while it is in the sheath, the device and the sheath must both be removed and replaced. Failure to replace both the device and the sheath may result in sheath and/or device malfunction.
    • If the device is retracted farther than the radiopaque markers (fully recaptured), the device and the sheath must both be removed and replaced. Failure to replace both the device and the sheath may result in sheath and/or device malfunction.
    • Physicians must be prepared to deal with urgent situations, such as pericardial effusion or device embolization, which can require removal of the device.
    • This device should be used only by physicians who are trained in standard transcatheter techniques. The physician should determine which patients are candidates for procedures that use this device.
    • Late pericardial effusion events were observed in the clinical study. The use of post-procedure anticoagulation therapy may be associated with an increased potential for a late pericardial effusion. Physicians should monitor for signs and symptoms of pericardial effusion and obtain appropriate imaging when indicated. Physicians should also consider routine echocardiography to screen for pericardial effusion.
    • Remove embolized devices. Do not remove an embolized device unless the device is fully captured inside a sheath.
    • The Amplatzer™ Amulet™ device contains a nickeltitanium alloy, which is generally considered safe. However, in vitro testing has demonstrated that nickel is released from this device for a minimum of 120 days. Patients who are allergic to nickel may have an allergic reaction to this device, especially those with a history of metal allergies. Certain allergic reactions can be serious; patients should be instructed to seek medical assistance immediately if they suspect they are experiencing an allergic reaction. Symptoms may include difficulty in breathing or swelling of the face or throat. While data are currently limited, it is possible that some patients may develop an allergy to nickel if this device is implanted.
    • Do not use this device if the sterile package is open or damaged.
    • The device was sterilized with ethylene oxide and is for single use only. Do not reuse or resterilize this device. Attempts to resterilize this device can cause a malfunction, insufficient sterilization, or harm to the patient.
    • Use on or before the expiration date that is printed on the product packaging label.

    PRECAUTIONS

    • The physician should exercise clinical judgment in situations that involve the use of antithrombotic drugs before, during, and/or after the use of this device.
    • The physician should exercise caution if implanting a device in a patient who has an implantable cardioverter defibrillator (ICD) or pacemaker leads.
    • The physician should have the guidewire in the left upper pulmonary vein when making exchanges in the left atrium.
    • Ensure that the vasculature is adequate for the sheath size being selected.
    • The physician should exercise caution if performing ablation at or near the implant site after the device is implanted.
    • Use standard interventional cardiovascular catheterization techniques when using Amplatzer™ products.
    • Use in specific populations
      • Pregnancy – Minimize the radiation exposure to the fetus and the mother.
      • Nursing mothers – There has been no quantitative assessment for the presence of leachables in breast milk.

    MRI SAFETY INFORMATION

    Non-clinical testing has demonstrated that the Amplatzer™ Amulet™ Left Atrial Appendage Occluder device is MR Conditional. A patient with the Amplatzer™Amulet™ device can be safely scanned in an MR system under the following conditions:

    • Static magnetic fields of 1.5 Tesla (1.5T) and 3.0 Tesla (3.0T)
    • Maximum spatial gradient field of 19 T/m (1900 G/cm)
    • Maximum MR system reported, whole-body averaged specific absorption rate (SAR) of 2.0 W/kg (normal operating mode)

    Under the scan conditions defined above, the device is expected to produce a maximum temperature rise of less than or equal to 4°C after 15 minutes of continuous scanning.

    In non-clinical testing, the image artifact caused by the device extends radially up to 20 mm from the device when imaged with a gradient echo pulse sequence in a 3.0T MR system.

    POTENTIAL ADVERSE EVENTS

    Potential adverse events associated with the device or implant procedure include, but are not limited to, the following:

    • Air embolism
    • Airway trauma
    • Allergic reaction
    • Anemia
    • Anesthesia reaction (nausea, vasovagal reaction, confusion/altered mental status or other)
    • Arrhythmia
    • Atrial septal defect
    • Bleeding
    • Cardiac arrest
    • Cardiac tamponade
    • Chest pain/discomfort
    • Congestive heart failure
    • Death
    • Device embolization
    • Device erosion
    • Device malfunction
    • Device malposition
    • Device migration
    • Device-related thrombus
    • Fever
    • Hematuria
    • Hypertension/hypotension
    • Infection
    • Multi-organ failure
    • Myocardial infarction
    • Perforation
    • Pericardial effusion
    • Pleural effusion
    • Renal failure/dysfunction
    • Respiratory failure
    • Seizure
    • Significant residual flow
    • Stroke
    • Thrombocytopenia
    • Thromboembolism: peripheral and pulmonary
    • Thrombus formation
    • Transient ischemic attack
    • Valvular regurgitation/insufficiency
    • Vascular access site injury (hematoma, pseudoaneurysm, arteriovenous fistula, groin pain or other)
    • Vessel trauma/injury
Abbott Logo

Making an everlasting
impact On human health
for 130 years

Follow Abbott

Copyright © 2023 Abbott, 3200 Lakeside Dr, Santa Clara, 95054, U.S.A.
Caution: These products are intended for use by or under the direction of a physician. Prior to use, reference the Instructions for Use, inside the product carton (when available) or at eifu.abbottvascular.com or at medical.abbott/manuals for more detailed information on Indications, Contraindications, Warnings, Precautions and Adverse Events.
Illustrations are artist’s representations only and should not be considered as engineering drawings or photographs. Photos on file at Abbott.
Unless otherwise specified, all product names appearing in this Internet site are trademarks owned by or licensed to Abbott, its subsidiaries or affiliates.
No use of any Abbott trademark, trade name, or trade dress in this site may be made without the prior written authorization of Abbott, except to identify the product or services of the company.

MAT-2004021 v15.0  |   Item approved for U.S. use only.

YOU ARE ABOUT TO ENTER AN ABBOTT COUNTRY OR REGION SPECIFIC WEBSITE.

Please be aware that the website you have requested is intended for the residents of a particular country or countries, as noted on that site. As a result, the site may contain information on pharmaceuticals, medical devices and other products or uses of the product that are not approved in other countries or regions.

U.S. Health Care Professionals International Health Care Professionals

YOU ARE ABOUT TO LEAVE
www.structural­heart.abbott

You are now leaving www.structuralheart.abbott. Abbott is not responsible for any content published on the third-party website you are about to enter. Abbott has not reviewed and does not endorse any information presented on third-party websites.

OkCancel
